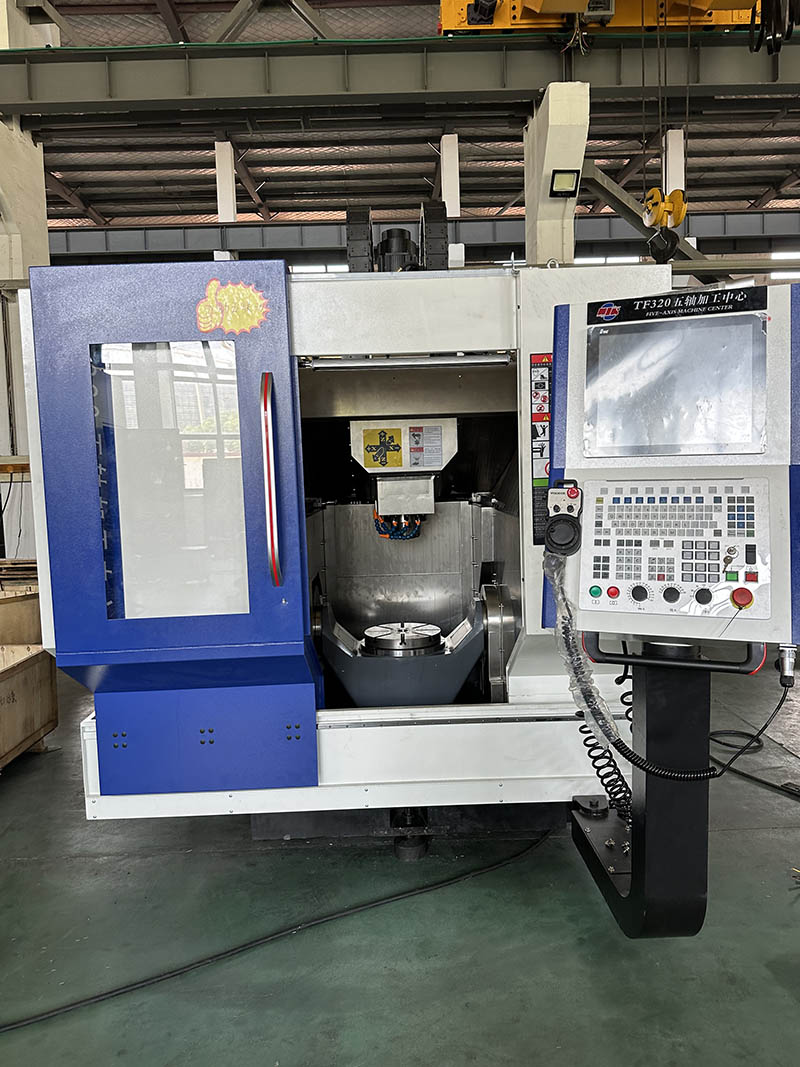

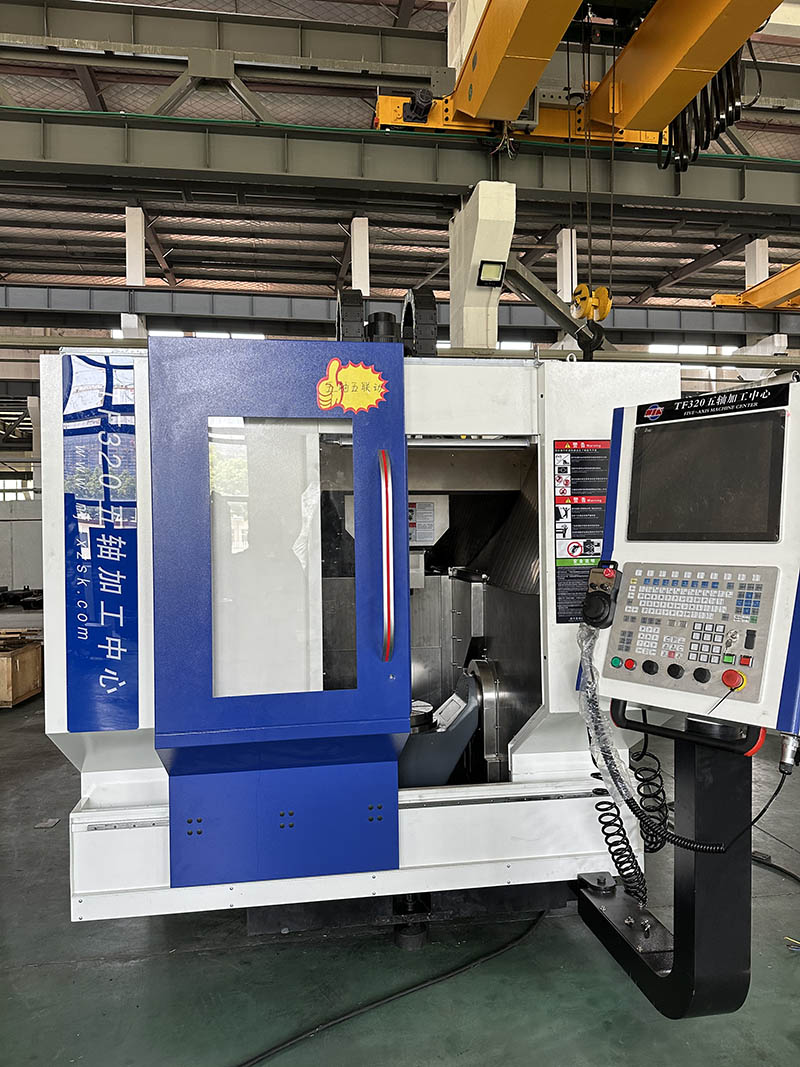

TF320
Column：Five-axis Machining Center
Date：2025-09-11
Attention level：342

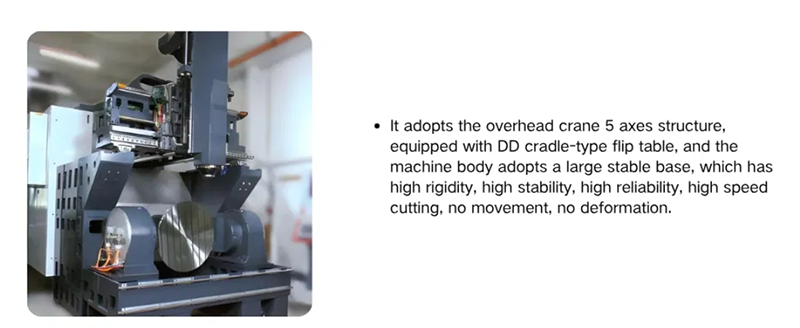

Introduce：The machine tool adopts a crane structure, and the base is cast with a mineral casting formula from Switzerland. It has no internal stress and does not need to be aged to relieve stress, allowing the machine tool to maintain good static accuracy and stability. Mineral castings have good shock-absorb
The machine tool adopts a crane structure, and the base is cast with a mineral casting formula from Switzerland. It has no internal stress and does not need to be aged to relieve stress, allowing the machine tool to maintain good static accuracy and stability. Mineral castings have good shock-absorbing properties, and the material itself can absorb the vibrations generated during processing, thereby ensuring good dynamic performance of the machine tool. The thermal conductivity of mineral castings, the main material of the machine tool, is one-fifth that of cast iron, which can ensure the long-term thermal stability of the machine tool.
TF320 | Parameter | |
System | Fanuc | |
Stroke range | Right and left X travel (mm) | 400 |
Forward and backward Y travel (mm) | 600 | |
Up and down Z-direction travel (mm) | 350 | |
Distance from spindle nose to table surface (mm) | 50-400 | |
Spindle | Spindle form | Electric spindle |
Spindle diameter (mm) | 150 | |
Spindle rated power (Kw) | 22 | |
Spindle rated torque (Nm) | 17.5 | |
Maximum speed (rpm) | 20000 | |
Spindle taper hole | BT30 | |

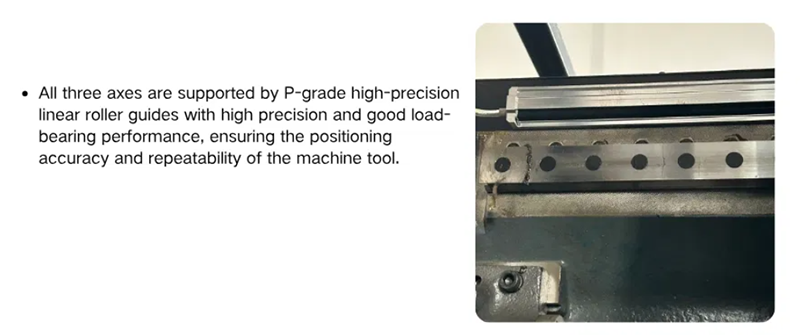

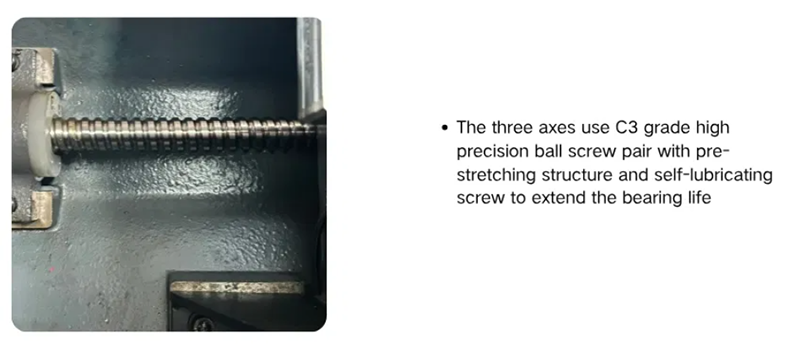

Screw Linear guideway | X///Y/Z axis wire rail specification (ball) | 3212/3212/3212 |
X///Y/Z axis wire rail specification (roller) | X:35/35-Y:25-Z:35 | |
Feed motors Speed | X///Y/Z axis rated torque | 12/22/12 |
X///Y/Z instantaneous rapid traverse speed (m/min) | 36/36/36 | |

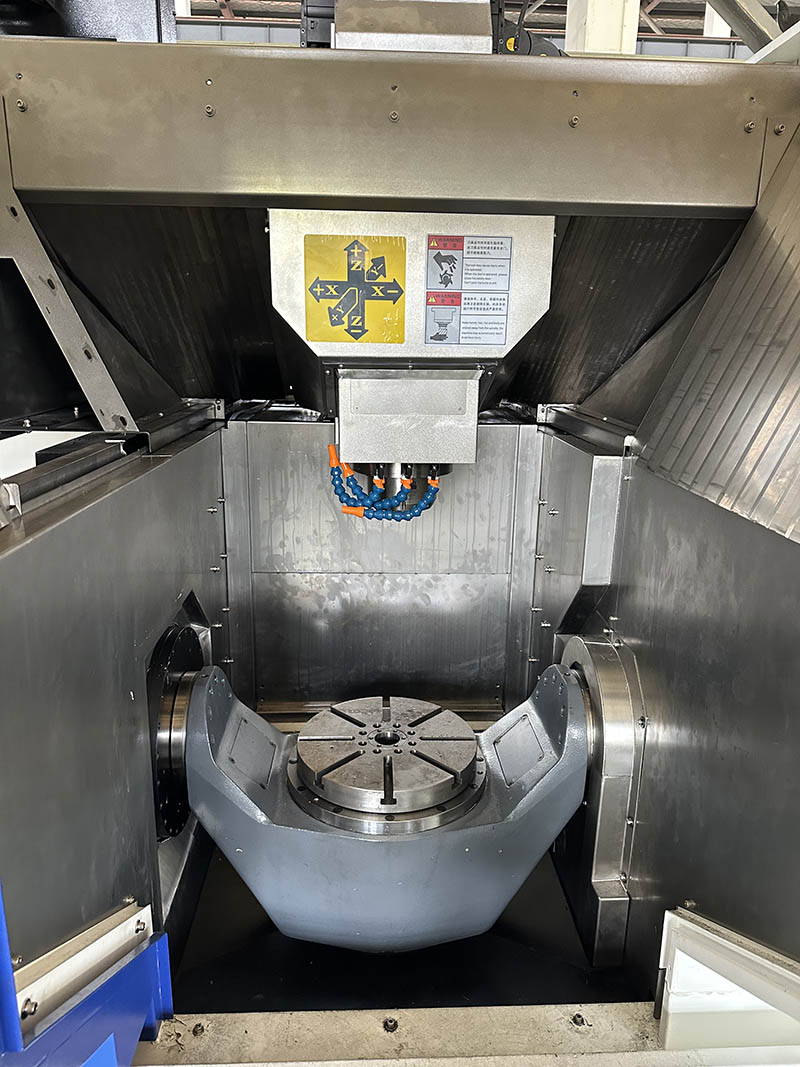

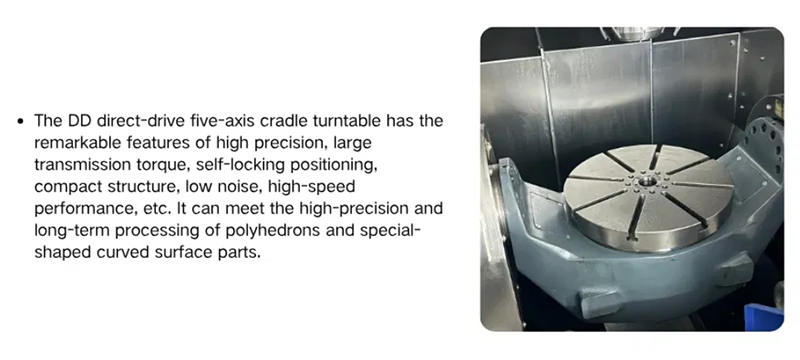

DD cradle turntable | Rotary table size (mm) | Φ320-12H7 |
Angle range of tilting axis B-axis (degree) | +120°~ -120° | |
Tilt axis rated torque (N.M) | 800 | |
Tilting axis brake torque (kg*m) | 150 | |
Angle range of rotary axis C-axis (degree) | N*360 | |
Rated torque of rotary axis (N.M) | 230 | |
Rotary axis brake torque (kg*m) | 100 | |
B/C positioning accuracy (sec) | ±5 | |
B/C Repeat Positioning Accuracy (sec) | ±3 | |
B/C axis speed (rpm) | 150/300 | |
Load capacity of rotary table (kg) | 200kg | |
Tool Magazine | Tool magazine type | BT30-20T (Umbrella) |
Precision | XYZ Positioning accuracy (mm) | ≤0.01 (semi-closed loop) |
XYZ Repeat positioning accuracy (mm) | ≤0.006 (semi-closed loop) | |
Weight(T) | 6T | |
APPLICATIONS
WORKPIECE SAMPLE
PACKAGE
EXHIBITION
CUSTOMER
SERVICE
Customers' feedback
-
2023-06-07
What is the charge of installing and commissioning?
Most of machines you can install well according to our drawing.
For some machines, it need our technician to go to your local site and help you install and commission machines.
At the same time, our technician will train your workers, it will table about 7~15days for different machines.
The return air-tickets, accommodation, food, salary (USD150.00/day for each technician), etc will be born by the end-user.
-
2023-06-07
What's the Payment Terms ?
T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC.
Other way can discuss according to different situation.
-
2023-06-07
What's the MOQ?
One set. The big discount will start from three sets.
-
2023-06-07
What's your main products of your company?
We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
-
2023-06-07
What is the package?
Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
-
2023-06-07
Do you have professional engineers?
Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
-
2023-06-07
How about your quality?
We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system.
Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL.
90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation.
So you can rest assured of our quality products and our best services.
-
2023-06-07
Do you have a stock?
Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.
Our fastest delivery time for 1~5 sets will be within one month.
-
2023-06-07
How is the warranty?
We will supply standard ports and accessories with our machine when shipment.
Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,
we will replace them by air or express immediately free of charge.
-
2023-06-07
Where is our factory located? How can I visit there?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
-
2023-06-07
How can I choose the most suitable machines ?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.
If you are the trading company, you can tell us your customer’s request or we will suggest you our best selling model for you.
