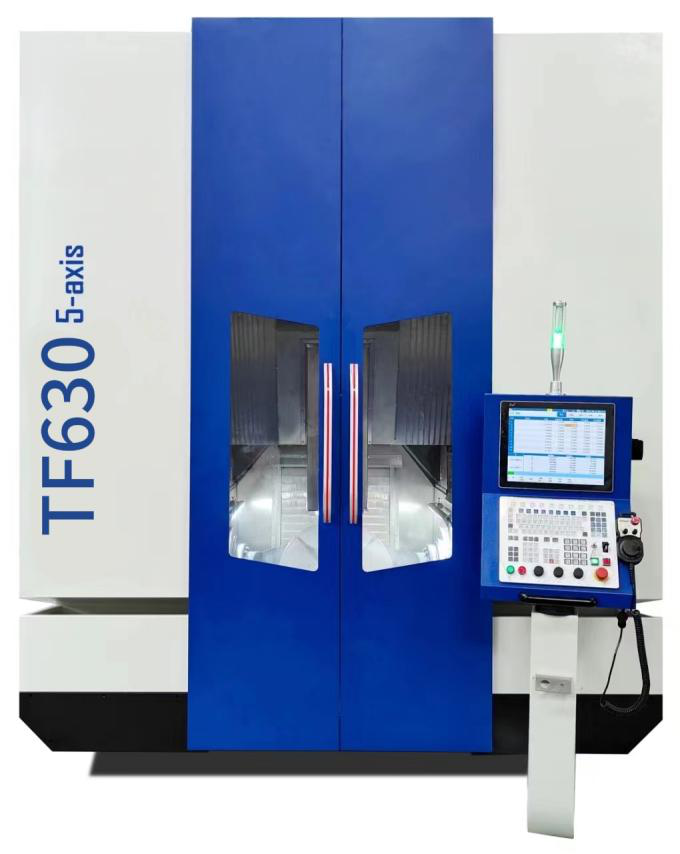

TF630
Column：Five-axis Machining Center
Date：2025-09-11
Attention level：433
Introduce：(1) 1 The machine tool adopts a crane structure, and the base is cast with a mineral casting formula from Switzerland. It has no internal stress and does not need to be aged to relieve stress, allowing the machine tool to maintain good static accuracy and stability. Mineral castings have good shock-
(1) 1 The machine tool adopts a crane structure, and the base is cast with a mineral casting formula from Switzerland. It has no internal stress and does not need to be aged to relieve stress, allowing the machine tool to maintain good static accuracy and stability. Mineral castings have good shock-absorbing properties, and the material itself can absorb the vibrations generated during processing, thereby ensuring good dynamic performance of the machine tool. The thermal conductivity of mineral castings, the main material of the machine tool, is one-fifth that of cast iron, which can ensure the long-term thermal stability of the machine tool.
(2) The moving parts are made of HT300 cast iron.
(3) Using Ф630 DD direct drive five-axis cradle, the AC axis is equipped with Yuheng circular grating.
(4)30KW electric spindle, HSK A63 18000 rpm (Abecco)
No. | Item | Spe. |
1 | Table size (mm) | Φ630/18H7 |
2 | Left/right travel (X) (mm) | 700 |
3 | Forward/backward travel (Y) (mm) | 870 |
4 | Up/down travel (Z) (mm) | 500 |
5 | A-axis swing angle (min. index 0.001°) | -91-121° |
A-axis rated torque (nm) | 1200*2 | |
A-axis rated speed (rpm) | 100 | |
6 | C-axis swing angle | n*360° |
C-axis rated torque (nm) | 1200 | |
C-axis rated speed/maximum speed (rpm) | 45/100 | |
7 | Distance from spindle endface to table surface (mm) | 150-650 |
8 | Spindle taper hole | HSK A63 |
9 | Spindle form | Electric |
10 | Spindle rated power | 30KW |
11 | Maximum spindle speed rpm | 18000 |
12 | Spindle torque NM (S1/S6) | 72/85 |
13 | Spindle diameter (mm) | Φ190mm |
14 | Maximum diameter of tool | Φ150mm |
15 | Tool magazine | 32T |
16 | Maximum length of tool | 300mm |
17 | Maximum weight of tool | 8kg |
18 | Tool change time (T-T) | 4sec |
19 | X.Y.Z axis motor configuration | 36/36/36NM |
20 | X.Y.Z-axis roller line rail specification (P) | MSR45/MSR45/MSR45 |
21 | Three-axis rapid traverse speed (M/min) | 36/36/36 |
22 | X.Y.Z motor connection method | Directly |
23 | Recommended choice. A.C axis motor parameters (torque NM) | A:1200N*2,C:1200NM |
24 | Rotary axis brake torque (kg*m) | 150 |
25 | Tilting axis brake torque (kg*m) | 350 |
26 | X\Y\Z positioning accuracy (mm) (after compensation) | ≤0.005 |
27 | X\Y\Z repeat positioning accuracy (mm) (after compensation) | ≤0.003 |
28 | A/C positioning accuracy (sec) (after compensation) | ≤6 |
29 | A/C repeat positioning accuracy (sec) (after compensation) | ≤4 |
30 | Table load | 600KG |
31 | 3-axis HEIDENHAIN Linear Encoder | 3micron |
