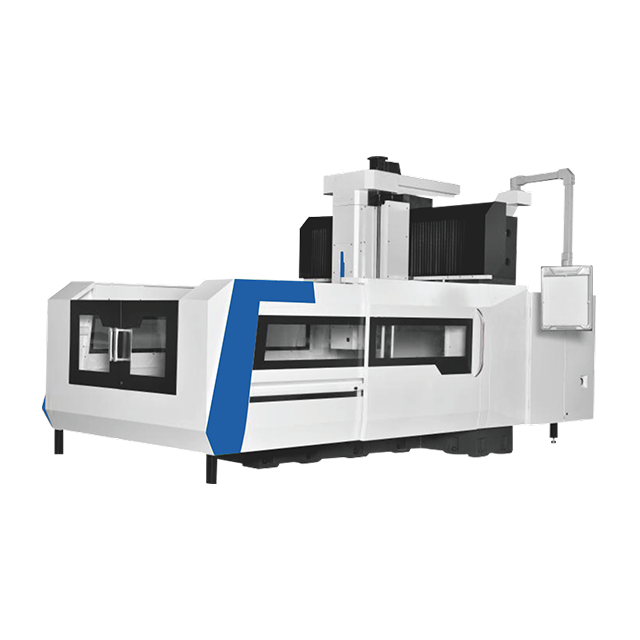

GMC-1613/2013
Column:Gantry Machining Center
Date:2022-07-28
Attention level:1003
Introduce:Excellent performance, stable precision and high rigidity This machine tool is made of high-grade resin sand casting and box-shaped structure design. After aging treatment, the internal stress is eliminated. The rigidity and strength of the whole machine show the characteristics of cutting resistance and high precision.
DESCRIPTION
Excellent performance, stable precision and high rigidity This machine tool is made of high-grade resin sand casting and box-shaped structure design. After aging treatment, the internal stress is eliminated. The rigidity and strength of the whole machine show the characteristics of cutting resistance and high precision.
FEATURE
Automatic tool change system
Fast and safe arm-type tool change system, providing fast, smooth and reliable tool exchange
The action is controlled by PLC software, and the tool exchange time is about 8 seconds, which reduces non-cutting time.
Rota-table control box
The rota-table seat type operation box control panel and the portable handwheel operation box are extremely convenient
The operator can use it at any position, the foot switch can clamp and release the tool on the spindle head
operation.
Servo motor
The servo motor directly drives the screw rod through the coupling, with less vibration and higher precision. three axis
Servo motor with built-in absolute encoder, indirect measurement of displacement, forming a semi-closed loop system
system to ensure positioning accuracy. The three-axis positioning is set by the numerical control system.
Specification | Unit | GMC-1613/2013 | GMC-2217/2717/-3017 | GMC-2219/2719/3219/4219 |
X axis | mm | 1700/2100 | 2200/2700/3000/4200 | 2200/2700/3200/4200 |
Y axis | mm | 1300 | 1700 | 1900 |
Z axis | mm | 860 | 860 | 1000 |
Gantry width | mm | 1370 | 1700 | 1900 |
Distance from nose of spindle to workbench | mm | 150~1010 | 340~1200 | 210~1210 |
Guideway type | XY:Linear guide Z:Slide Guideways | XY:Linear guide Z:Slide Guideways | XY:Linear guide Z:Slide Guideways | |
Workbench size (X/Y axis) | mm | 1700/2100*1100 | 2200/2700/3000/4200*1500 | 2200/2700/3200/4200*1700 |
Maxi workbench load weight | T | 4/5 | 4/5/6/7 | 5/6/7/8 |
T-slot | No/mm | 11-12/150 | 11-22×150 | 11-22×150 |
Spindle tapered bore (type/installation size) | mm | BT50 ISO50 7:24 | BT50 ISO50 7:24 | BT50 ISO50 7:24 |
Spindle speed | rpm | 6000 | 6000 | 6000 |
Spindle drive type | Belt | Belt | Belt | |
X/Y/Z-axis rapid feed | m/min | 8/16/16 | 8/16/16 | 8/16/16 |
Max. cutting feed | mm/min | 5~6000 | 5~6000 | 5~6000 |
Tool change method | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | |
Tool-holder specification | type | BT50 | BT50 | BT50 |
Tool capacity | tools | 24 | 24 | 24 |
Max.tool weight | kg | 15 | 15 | 15 |
Fastest tool change time (T-T) | sec | 4 | 4 | 4 |
Spindle motor | kw | 15/18.5 | 15/18.5 | 15/18.5 |
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 |
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Machine size:L*W*H | mm | 5400/6400*4000*3600 | 6800/7800/8800/10800*4600*3800 | |
Machine.Weight approx. | T | 14.5/16 | 19/22/25/29 | 21/25/29/35 |
Specification | Unit | GMC-2020/2520/3020 | GMC-3022/4022 | GMC-3028/4028/6028 |
X axis | mm | 2000/2500/3000 | 3200/4200 | 3200/4200/6500 |
Y axis | mm | 2060 | 2300 | 2900 |
Z axis | mm | 860 | 1000 | 1250 |
Gantry width | mm | 2000 | 2300 | 2900 |
Distance from nose of spindle to workbench | mm | 175~1035 | 175~1175 | 175~1425 |
Guideway type | XY:Linear guide Z:Slide Guideways | XY:Linear guide Z:Slide Guideways | XY:Linear guide Z:Slide Guideways | |
Workbench size (X/Y axis) | mm | 2000/2500/3000*1800 | 3200/4200*2000 | 3200/4200/6000*2500 |
Maxi workbench load weight | T | 4/5/7 | 10/12 | 2010/12/16 |
T-slot | No/mm | 11-22*175 | 11-22×175 | 12-22×180 |
Spindle tapered bore (type/installation size) | mm | BT50 ISO50 7:24 | BT50 ISO50 7:24 | BT50 ISO50 7:24 |
Spindle speed | rpm | 6000 | 6000 | 6000 |
Spindle drive type | Belt | Belt | Belt | |
X/Y/Z-axis rapid feed | m/min | 8/12/10 | 8/12/10 | 2008/12/10 |
Max. cutting feed | mm/min | 5~6000 | 5~6000 | 5~6000 |
Tool change method | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | |
Tool-holder specification | type | BT50 | BT50 | BT50 |
Tool capacity | tools | 24 | 24 | 24 |
Max.tool weight | kg | 15 | 15 | 15 |
Fastest tool change time (T-T) | sec | 4 | 4 | 4 |
Spindle motor | kw | 15/18.5 | 15/18.5 | 15/18.5 |
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 |
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
Machine size:L*W*H | mm | 7000/8000/9000*4700*4600 | 8300/10300*4900*4800 | 9000/11000/15000*5500*4800 |
Machine.Weight approx. | T | 22/25/30 | 32/37 | 38/44/60 |
