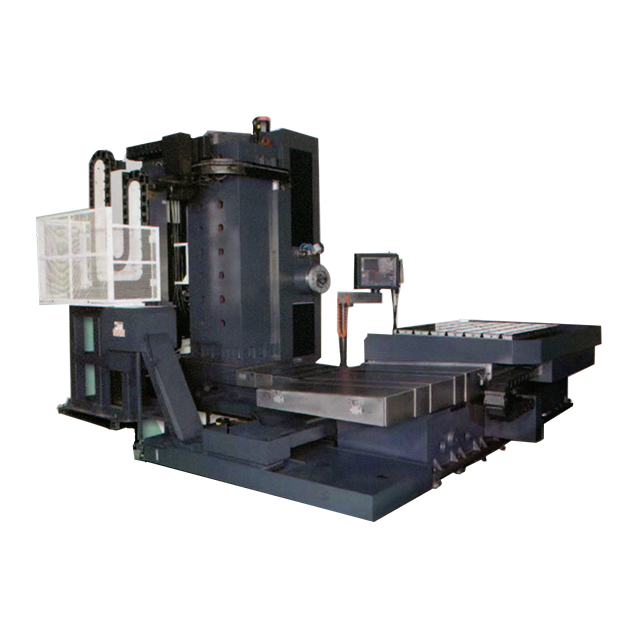

XZ-TYPE HORIZONTAL BORING-MILLING MACHINING CENTER SERIES
Column：Cnc Boring And Milling Machine
Date：2022-07-28
Attention level：618
Introduce：The boring and milling machine combines the processing methods of boring and milling machines, and is mainly used for boring and milling planes
DESCRIPTION
The boring and milling machine combines the processing methods of boring and milling machines, and is mainly used for boring and milling planes. According to the degree of automation, it is divided into: traditional boring and milling machine, precision boring and milling machine and CNC boring and milling machine; according to the layout form, it is divided into vertical boring and milling machine, horizontal boring and milling machine, floor type boring and milling machine
It has high precision, high efficiency and excellent processing ability. Absolute coordinates are adopted, no long-distance origin return operation is required, and non-processing time is effectively shortened. Five-axis (X, Y, Z, W, B-axis) control, four-axis synchronous control, positioning the table at any angle (B-axis function). It is suitable for multi-face machining of the workpiece, only needs to install the workpiece and adjust it once. It is equipped with a rotary table for precise positioning and ensures the mutual accuracy of each processing surface. Configure the tool magazine to upgrade to a machining center. Applicable to the processing of various large boxes and cylinders. Use industries such as: construction machinery, wind power, ships, aircraft, locomotives, automobiles, machine tools and other industries
FEATURE

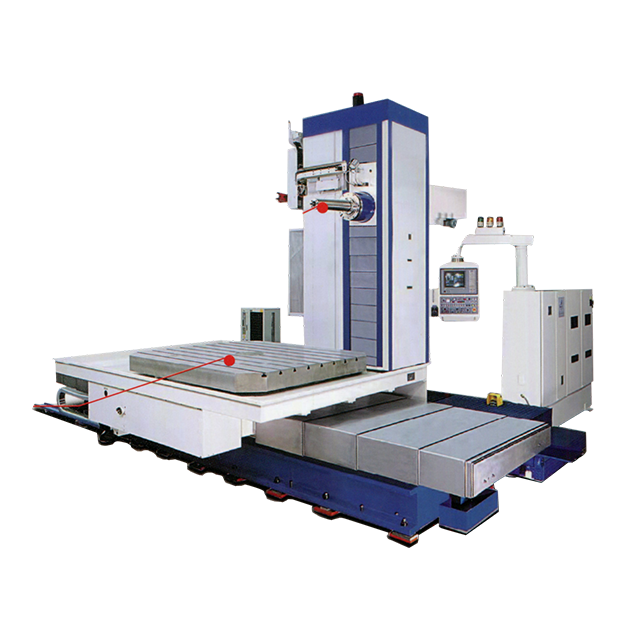

CNC horizontal boring and milling
High Torque Spindle Design
The main shaft is made of chrome-molybdenum alloy steel, the hardness is as high as HRC60-62, which ensures the best rigidity and precision. The boring bar can be extended to 500/800/1000 long and has the ability to process deep holes, and it can process true circles to micron level.
High precision rotary table
The workbench (B-axis) is clamped by annular hydraulic pressure. During heavy cutting, its precision is stable and excellent. The rotary adopts servo control and automatic rotary positioning, which is suitable for various processing needs. The disc has achieved excellent precision through professional scraping technology. precision.
Easy-to-navigate control panel
The panel design is beautiful, and it conforms to the ergonomic operation habit. It can be rotated left and right, and the screen can be manually controlled and RS232 network transmission.
Fully closed loop control
Imported optical rulers are installed on all three axes to improve the positioning accuracy and facilitate the processing of ultra-precision parts.
Finite Element Analysis (FEA)
All castings are made of FC300 cast iron, and the stresses are simulated by finite element analysis software.
PARAMETER
Specification | Unit | XZ-110 | XZ-130 | XZ-160 |
Workbench dimensions | mm | 1200x1400 | 1600x1800 | 2200x2500 |
Workbench load capacity | kg | 5000 | 10000 | 15000 |
Max. swing diameter | mm | ∅3000 | ∅4200 | ∅5600 |
Dividing angle | ° | 0.001° | 0.001° | 0.001° |
Workbench surface to spindle centre | mm | 20~1620 | 80~880 | 80~1080 |
Workbench centre to spindle end | mm | 50~1750 | 100~2300 | 200~2800 |
X-axis stroke | mm | 2500 | 3000 | 4500 |
Y-axis stroke | mm | 1600 | 2000 | 2500 |
Z-axis stroke | mm | 1400 | 1600 | 2000 |
W-axis stroke | mm | 500 | 800 | 1000 |
Boring bar diameter | mm | 110 | 130 | 160 |
Spindle speed range | rpm | 20-2500 | 20-1500 | 20-1000 |
Spindle motor | kw | 18.5 | 27 | 37 |
Shaft Bore | / | BT50 | BT50 | BT50 |
Rapid movement XYZ | m/min | 2010/10/10 | 2008/8/8 | 2006/6/6 |
Cutting feed speed | m/min | 6 | 5 | 4 |
No. of tool positions | t | 24(optional 30、40、60、100) | 24(optional 30、40、60、100) | 24(optional 30、40、60、100) |
Max. tool weight | kg | 25 | 25 | 25 |
Tool change time | g | 8 | 8 | 8 |
Max. diameter of tool full/adjacent empty tool | / | ∅120/∅250 | ∅120/∅250 | ∅120/∅250 |
Max. tool length | mm | 400 | 400 | 400 |
Spigot type | / | P50T 1 | P50T 1 | P50T 1 |
Tool selection method | / | Choose the nearest tool | Choose the nearest tool | Choose the nearest tool |
Positioning accuracy | mm | ±0.025 | ±0.03 | ±0.045 |
Repositioning accuracy | mm | ±0.012 | ±0.015 | ±0.015 |
B-axis positioning accuracy | S | ±15 | ±30 | ±30 |
B-axis repositioning accuracy | S | ±8 | ±15 | ±15 |
Machine Covered area L*W*H | mm | 5200*6800*4000 | 8200*8200*4900 | 11000*10000*5500 |
Machine Weight | t | 28 | 43 | 65 |
APPLICATIONS
WORKPIECE SAMPLE
PACKAGE
EXHIBITION
CUSTOMER
SERVICE
-
2023-06-07
What is the charge of installing and commissioning?
Most of machines you can install well according to our drawing.
For some machines, it need our technician to go to your local site and help you install and commission machines.
At the same time, our technician will train your workers, it will table about 7~15days for different machines.
The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user.
-
2023-06-07
What's the Payment Terms ?
T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC.
Other way can discuss according to different situation.
-
2023-06-07
What's the MOQ?
One set. The big discount will start from three sets.
-
2023-06-07
What's your main products of your company?
We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
-
2023-06-07
What is the package?
Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
-
2023-06-07
Do you have professional engineers?
Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
-
2023-06-07
How about your quality?
We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system.
Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL.
90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation.
So you can rest assured of our quality products and our best services.
-
2023-06-07
Do you have a stock?
Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.
Our fastest delivery time for 1~5 sets will be within one month.
-
2023-06-07
How is the warranty?
We will supply standard ports and accessories with our machine when shipment.
Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,
we will replace them by air or express immediately free of charge.
-
2023-06-07
Where is our factory located? How can I visit there?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
-
2023-06-07
How can I choose the most suitable machines ?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.
If you are the trading company, you can tell us your customer’s request or we will suggest you our best selling model for you.
