NMC-36/50/60/60-2/70/80/966VS
Column:Vertical Machining Center
Date:2022-06-19
Attention level:1575

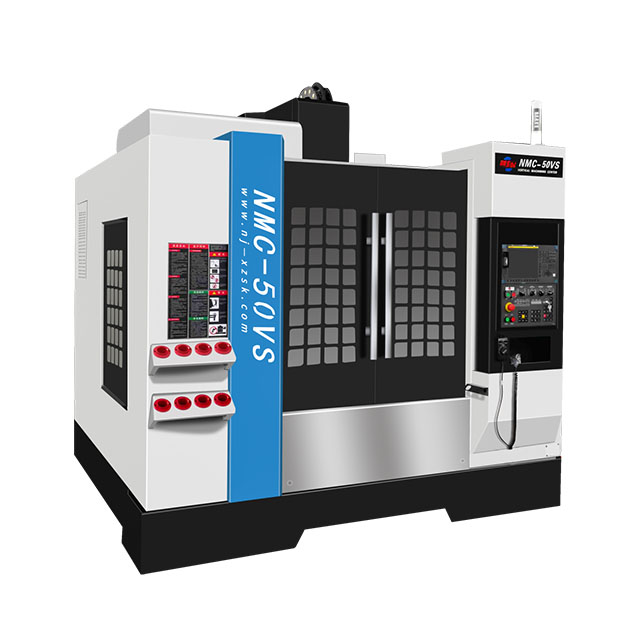

Introduce:NMC-50VSP
DESCRIPTION
Machine tool features The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.
FEATURE
The XYZ three-axis adopts heavy-duty roller linear guide rail, which has the advantages of good dynamic characteristics, large load-carrying capacity, high running precision, no creeping at low speed, and small frictional resistance.
X/Y/Z axis feed mechanism: AC servo motor + coupling + high-precision ball screw (pre-tightening treatment is adopted between the ball screw and the nut, the whole stroke is inspected, and the clearance is eliminated) structure.
The Z-axis is driven by a high-power servo motor with brake (without mechanical balance device) to ensure that the machine tool has a high dynamic response speed, and is equipped with a
Sudden drop function (that is, Z-direction anti-fall and rapid lifting when power is off, preventing damage to tools or workpieces).
PARAMETER
Specification | Unit | NMC-36VS | NMC-50VS | NMC-966VS | NMC-60VS | NMC-60VS-2 | NMC-70VS | NMC-80VS |
X/Y/Z axis | mm | 520/380/450 | 800/550/550 | 900/600/600 | 1100/600/600 | 1100/600/600 | 1300/700/700 | 1600/800/700 |
Distance from spindle nose to workbench | mm | 110~560 | 120-670 | 120~720 | 100-700 | 120-720 | 160-860 | 140-840 |
The distance from the spindle centre to the column railway | mm | 436 | 595 | 655 | 655 | 655 | 783 | 937 |
Track form | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ: Linear guide | XYZ:Y4 Linear guide | XYZ: Linear guide | |
Workbench size(L*W) | mm | 360×700 | 1000*550 | 600×1000 | 1200*600 | 1200*600 | 1400/1500*700 | 1700*800 |
The max.load capacity | kg | 450 | 600 | 800 | 800 | 800 | 1400 | 1800 |
T-Slot | No/mm | 3-18×125 | 5-18×90 | 5-18×100 | 5-18×100 | 5-18×100 | 18*5*150*50 | 5-18×125 |
Spindle taper hole | BT40 | BT40 | BT40 | BT40 | BT40X2 | BT40/BT50 | BT50 | |
Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 8000/6000 | 8000 |
Spindle drive mode | Belt | Belt | Belt | Belt | Belt | Belt | Belt | |
X/Y/Z axis rapid feeds | m/min | 36/36/24 | 36/36/24 | 30/30/24 | 30/30/24 | 24/24/24 | 24/24/24 | 20/20/20 |
Max.cutting feed | mm/min | 10000 | 10000 | 12000 | 10000 | 10000 | 10000 | 10000 |
Tool change method | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | Side-mounted manipulator type | |
Toolholder specifications | type | BT40 | BT40 | BT40 | BT40 | BT40 (Double tool magazine) | BT40/BT50 | BT50 |
Tool Capacity | tools | 16 | 24 | 24 | 24 | 24 | 24 | 24 |
Maximum tool weight | kg | 2 | 8 | 8 | 8 | 8 | 8/15 | 15 |
Fastest tool change time(T-T) | sec | 2 | 2 | 2 | 2 | 2 | ||
Spindle motor | kw | 5.5/7.5 | 7.5/11 | 11/15 | 11/15 | 11/15 | ||
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ||
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ||
L*W*H | mm | 1770*2100*2280 | 2600*2400*2550 | 2600*2300*2600 | 3300*2500*2700 | 3300*2500*2700 | ||
Weight | T | 3.5 | 5.5 | 7 | 7.5 | 8 |
