NMC-45H/45H-1/63H/63H-1/80H/80H-1/100H/100H-1
Column:Horizontal Machining Center
Date:2022-07-27
Attention level:1146

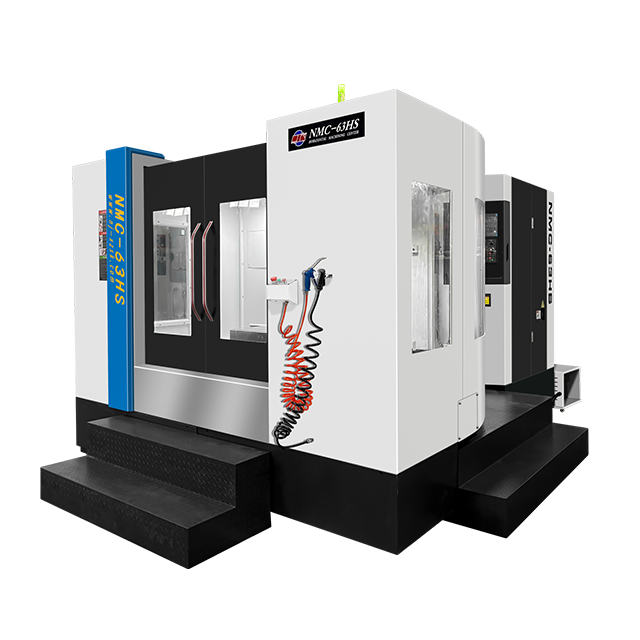

Introduce:NMC-63HS
FEATURE
◎ Adopt the internationally popular inverted T-shaped moving column overall bed structure, which has the advantages of high rigidity, good stability, and easy protection.
◎ The main castings are made of high-grade high-quality cast iron, resin sand molding, and secondary aging treatment after rough machining to ensure the stability of precision.
◎ Fully enclosed protection design, double-sided spiral chip removal structure, equipped with large-capacity cutting fluid tank and convenient machine cleaning air gun, optional chain plate type chip removal lifting device and chip storage car.
◎ Standard BT50 ring-sprayed spindle, equipped with an air curtain protection device, completely avoids the penetration of cutting fluid and dust; the spindle sleeve is cooled by circulating oil to ensure the accuracy of the spindle and prolong its service life.
◎ Fast and reliable cam manipulator tool changing mechanism, with 30 standard configurations and 40 chain tool magazines can be selected.
High speed, high precision, large load capacity, small footprint, strong rigidity
◎ The oil-water separation structure design of the machine tool is equipped with a centralized lubricating oil recovery system to save oil and protect the environment.
◎ The three-axis ball screw is pre-stretched with double supports to optimize the transmission rigidity and reduce thermal deformation.
◎ Adopt the latest FANUC wide-area high-torque spindle servo motor, cooperate with high-torque synchronous toothed belt drive (direct connection structure between motor and spindle can be selected), a variety of main shaft configuration (belt drive, direct-coupled spindle, ZF gearbox) options are available to meet the processing requirements of different materials.
◎ The three-axis feed drive adopts imported heavy-duty roller linear guide rails, and the preload is V3 level, with high load capacity and stable precision.
◎ 1 The rotary table adopts high-precision end gear positioning, which can provide 1°×360 bidirectional positioning turntable with high indexing and positioning accuracy.

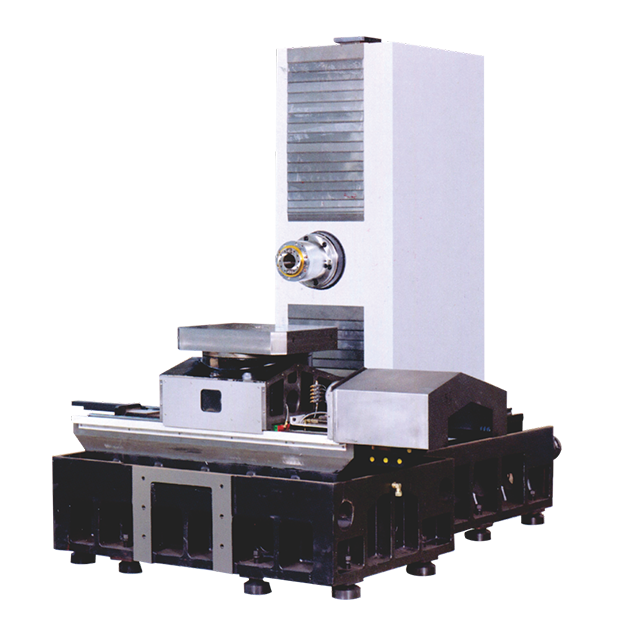

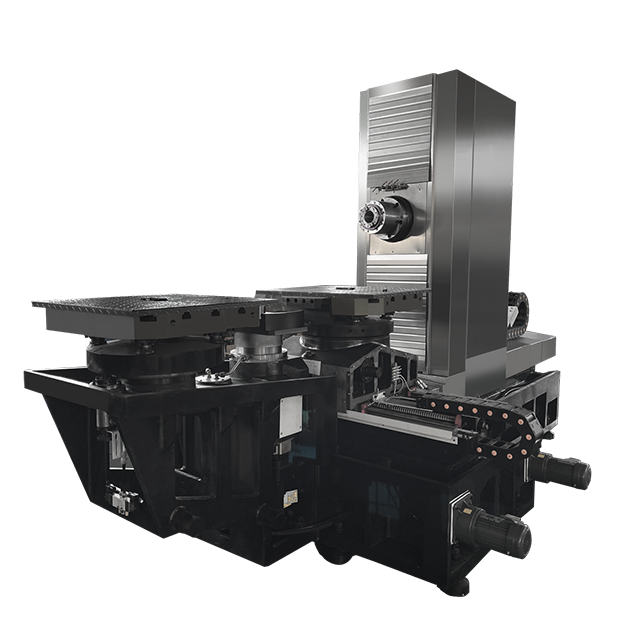

Bed structure introduction
◎ Classic column moving structure, the overall base is rigid enough, oil-water separation structure.
◎ The side layout of the manipulator tool magazine is isolated and protected, and the tool change is fast and reliable.
◎ The X-direction guide cover has a large inclination angle, double-sided spiral + chain rear chip removal, and the chip removal is smoother.
◎Three-axis heavy-duty roller linear guide, good acceleration performance, suitable for high-efficiency processing.
◎Spindle configuration with high rigidity, wide-area high-torque spindle motor, strong re-cutting capability.
◎Full-featured, flexible configuration, convenient expansion, to meet different customer requirements.
◎Fully servo-driven dual-pallet exchange device, the movement is smoother and more stable.
Specification | Unit | NMC-45H/45H-1 | NMC-63H/63H-1 | NMC-80H/80H-1 | NMC-100H/100H-1 |
X/Y/Z axis | mm | 600*610*600 | 1050/750/900 | 1300/1000/1000 | 1600/1000/1000 |
Distance from spindle end to workbench centre | mm | 60~660 | 130~1030 | 200~1200 | 200~1200 |
Distance from spindle centre to workbench surface | mm | 40~650 | 120-870 | 160~1160 | 120~1120 |
Workbench size(L*W) | mm | 450*450 | 630×700 | 800*800 | 1000*1000 |
Max. workbench load | Kg | 800 | 1500 | 2000 | 2500 |
Workbench divisions | mm | 1°/0.001° | 1°/0.001° | 1°/0.001° | 1°/0.001° |
Double-workbench exchange time | Sec | 15 | 15 | 30 | 55 |
Max. workpiece turning diameter on workbench | mm | 570 | 1400 | 1800 | 2000 |
T-slot(number - width -spacing) | Mm | 5-22-100 | 5-22-125 | 5-22-160 | 5-22-200 |
Spindle tapered bore (type / installed size) | mm | BT40 | BT50 | BT50 | BT50 |
Spindle speed | rpm | 8000 | 6000 | 6000 | 6000 |
X/Y/Z axis rapid feed | m/min | 30/30/30 | 24/24/24 | 20/20/20 | 20/20/20 |
Maximum cutting feed | mm/min | 10000 | 10000 | 10000 | 10000 |
Tool change method | Knife arm type | Knife arm type | Knife arm type | Knife arm type | |
Toolholder specifications | type | BT40 | BT50 | BT50 | BT50 |
Tool capacity | tools | BT40-24/30 | BT50-30/40/60 Chain-type | BT50-30/40/60 Chain-type | BT50-30/40/60 Chain-type |
Max. tool weight | kg | 8 | 18 | 18 | 18 |
Fastest tool change time (T-T) | sec | 2.5 | 5 | 5 | 5 |
Spindle motor | kw | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.006 |
Repositioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
Machine size:L*W*H | mm | 2500*3300*2560 | 3850/5050×3550×3200 | 4800/6800×4200×4100 | 4850/6880×4280×4100 |
Machine.Weight approx. | t | 7 | 12 | 16.5 | 20 |

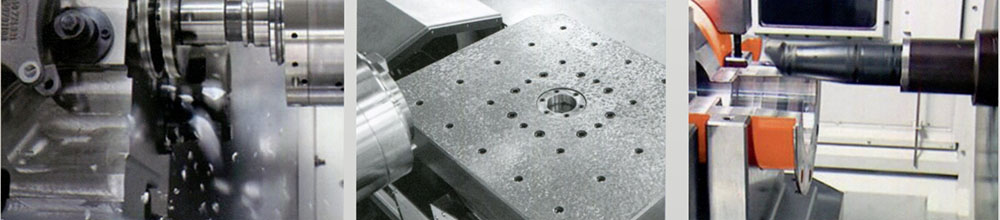

APPLICATIONS
WORKPIECE SAMPLE
PACKAGE
EXHIBITION
CUSTOMER
SERVICE
-
2023-06-07
What is the charge of installing and commissioning?
Most of machines you can install well according to our drawing.
For some machines, it need our technician to go to your local site and help you install and commission machines.
At the same time, our technician will train your workers, it will table about 7~15days for different machines.
The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user.
-
2023-06-07
What's the Payment Terms ?
T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC.
Other way can discuss according to different situation.
-
2023-06-07
What's the MOQ?
One set. The big discount will start from three sets.
-
2023-06-07
What's your main products of your company?
We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
-
2023-06-07
What is the package?
Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
-
2023-06-07
Do you have professional engineers?
Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
-
2023-06-07
How about your quality?
We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system.
Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL.
90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation.
So you can rest assured of our quality products and our best services.
-
2023-06-07
Do you have a stock?
Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.
Our fastest delivery time for 1~5 sets will be within one month.
-
2023-06-07
How is the warranty?
We will supply standard ports and accessories with our machine when shipment.
Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,
we will replace them by air or express immediately free of charge.
-
2023-06-07
Where is our factory located? How can I visit there?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
-
2023-06-07
How can I choose the most suitable machines ?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.
If you are the trading company, you can tell us your customer’s request or we will suggest you our best selling model for you.
