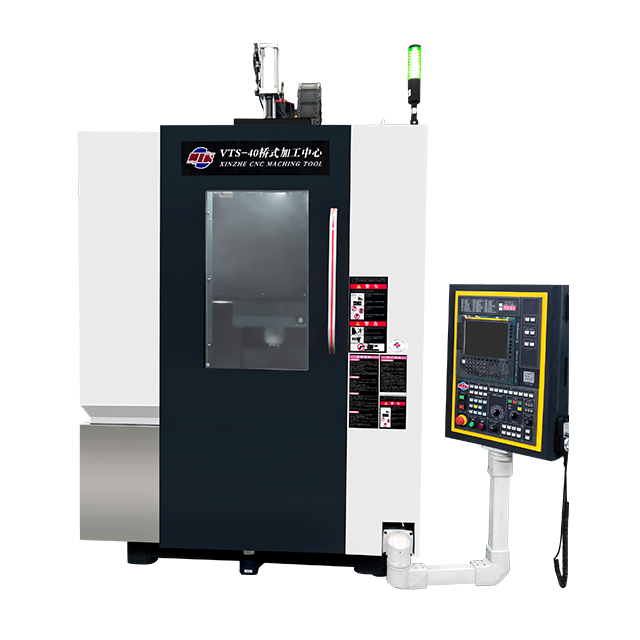

VTC-40S/VTC-40S/1
Column：Five-axis Machining Center
Date：2022-07-28
Attention level：609
Introduce：The five-axis linkage machining center is also called the five-axis machining center. It is a machining center with high technological content and high precision specially used for machining complex curved surfaces.
DESCRIPTION
The five-axis linkage machining center is also called the five-axis machining center. It is a machining center with high technological content and high precision specially used for machining complex curved surfaces. Equipment, high-precision medical equipment and other industries have a decisive influence. The five-axis linkage CNC machining center system is the only means to solve the processing of impellers, blades, marine propellers, heavy generator rotors, steam turbine rotors, large diesel engine crankshafts, etc.
FEATURE
An innovative model with viaduct-type optimized design, the motion transmission mechanism is effectively isolated from the workpiece processing area, and while optimizing the motion environment, it expands the range of workpiece materials that can be processed (such as graphite, ceramics).
The door-type base of the overall frame is rigid enough to be self-heavy, and the natural frequency is improved by anti-vibration and vibration isolation, and there will be no resonance and flutter phenomenon.
Thermal symmetry, single-screw mid-drive, crossbeam moving back and forth, excellent synchronous movement and linkage effect.
Small footprint, suitable for production line layout.
A number of patented technologies and the refinement and sublimation of more than 30 years of experience in the industry, the perfect combination of technical indicators such as speed, efficiency, precision, operation comfort, and flexible expansion.
Specification | Unit | VTC-40S/1 | VTC-40S | VTC-650G |
Workbench specifications (W x L) | mm | 2-400×600 | 400×800 | 500×600 |
Max. workbench load | kg | 2-350 | 800 | 800 |
X/Y/Z axis coordinate travel | mm | 500/400/450 | 500/400/450 | 600/500/450 |
Distance from spindle end to workbench surface | mm | 120～570 | 180～630 | 180～630 |
X/Y/Z axis rapid movement speed | m/min | 30/30/30 | 36/36/30 | 18/18/18 |
Feed cutting speed | mm/min | 5～8000 | 5～10000 | 5～15000 |
Spindle speed range | r/min | 60～12000 | 100～15000 | 200～30000 |
Spindle motor power (nominal/intermittent) | kW | 5.5/11（S1/S3-15%） | 9/15（S1/S3-25%） | 7.5/11（S1/S3-25%） |
Spindle output torque (nominal/intermittent) | Nm | 26.3/70（S1/S3-15%） | 57.2/118（S1/S3-25%） | 5.97/8.76 |
Tool holder type/maximum tool weight | kg | BT40 /7 | BBT40 /7 | HSK-E40 /5 |
Tool magazine capacity/form | 2/16/24 optional | |||
Positioning accuracy/repositioning accuracy | mm | 0.010/0.005 (VDI/DGQ 3441 standard) | ||
Machine size:L*W*H | mm | 1450×4000×2000 | ||
Machine.Weight approx. | kg | 8000 | 7500 | 7500 |
