UTC-300S/UTC-300SF/UTC-500S
Column：Five-axis Machining Center
Date：2022-07-28
Attention level：609
Introduce：Double-arm cradle-type CNC turntable, both the tilting axis and the rotating axis have large apertures, and the radial axis is supported by bearings, which is very rigid and resistant to heavy cutting
Machine Features

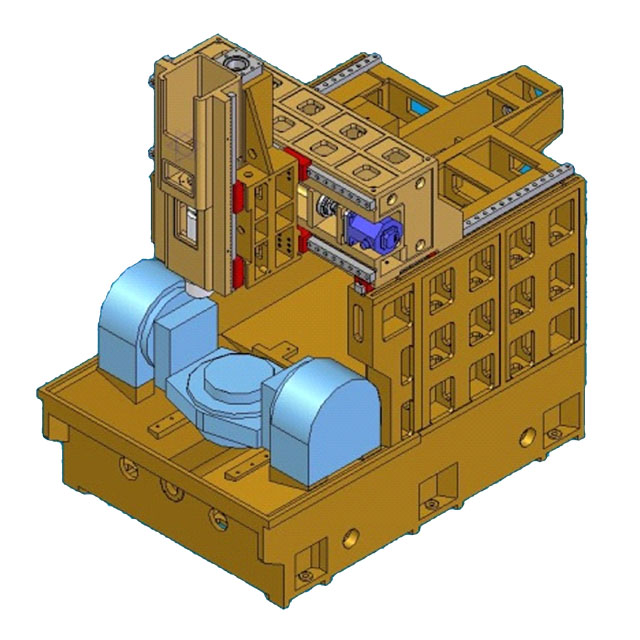

Double-arm cradle-type CNC turntable, both the tilting axis and the rotating axis have large apertures, and the radial axis is supported by bearings, which is very rigid and resistant to heavy cutting.
The heavy-duty tilting shaft adopts imported brand worm gear, which is wear-resistant and has high precision.
The tilting axis, rotating axis and supporting axis all adopt encircling hydraulic brake mechanism.
The spindle configuration scheme is flexible, it can be matched with the conventional BT40 direct-coupled spindle, or the built-in electric spindle with a speed up to 20000r/min (BBT40 or HSK A63 tool holder). The spindle configuration scheme is flexible, it can be matched with the conventional BT40 direct-coupled spindle, or the built-in electric spindle with a speed up to 20000r/min (BBT40 or HSK A63 tool holder).
UTC-300S type: A/C axis layout, 5-axis control and 5-axis linkage (or any 4-axis linkage with higher cost performance), wide application range.
UTC-300SF type: A/C axis layout, high-speed DD servo motor drives A/C axis, of which C axis can be converted into Cs (spindle) working mode, the maximum speed can reach 2000r/min, with turning and milling compound function, can Enables mill-turn machining including high-precision turning.
UTC-500S type: B/C axis layout, 5-axis control and 5-axis linkage, and the machining diameter is expanded to 500mm.
Specification | Unit | UTC-300S | UTC-300SF | UTC-500S |
Workbench specifications | mm | Ø 320 | Ø 300 | Ø 500 |
Max. workbench load | kg | 120 | 120 | 400 |
Distance from spindle end to workbench surface | mm | 310～760 | 310～760 | 120～470 |
X/Y/Z axis coordinate travel | mm | 500/400/450 | 500/400/450 | 500/600/450 |
X/Y/Z axis rapid movement speed | m/min | 30/30/24 | 30/30/24 | 24/24/20 |
Feed cutting speed | mm/min | 5～15000 | ||
Rotary workbench (C-axis) rotary range | ° | 0～360° | ||
Tilt axis (B/A axis) rotary range | ° | A axis：-110°～+110° | A axis：-110°～+110° | B axis：-110°～+110° |
C-axis (or Cs-axis) rotary speed | r/min | Max：25 | Cs axis、Max：2000 | Max：25 |
Spindle taper shank | Direct-coupled spindle：BT40 or Built-in spindle：HSK A63 | |||
Spindle speed range | r/min | Direct-coupled spindle：60～12000 or Built-in spindle：100～20000 | ||
Spindle motor power (nominal/intermittent) | kW | Direct-coupled spindle：7.5/11 (S1/30min) or Built-in spindle：20/24（S1/S6-40%） | ||
Spindle output torque (nominal/intermittent) | Nm | Direct-coupled spindle：47.5/70 (S130min) or Built-in spindle：30.7/36.8（S1/S6-40%） | ||
Toolholder capacity/maximum tool weight | pcs/kg | 7 | ||
Positioning accuracy/repositioning accuracy | mm | 0.010/0.006 (VDI/DGQ 3441 standard) | ||
Rotary axis indexing accuracy/repeat accuracy | ″ | A axis：50/ 8、C axis：15/ 4 | A axis：50/ 8、C axis：20/ 4 | B axis：50/ 8、C axis：15/ 4 |
Control system | HNC-848C、GSK-25i、Siemens840D、FANUC and so on | |||
External dimensions（L×W×H） | mm | 1450×4000×2000 | 1450×4000×2000 | 1450×4000×2000 |
Machine tool weight | kg | 7500 | 7500 | 8000 |
APPLICATIONS

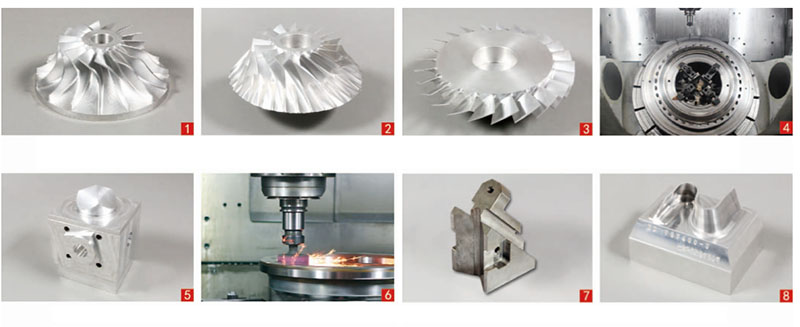

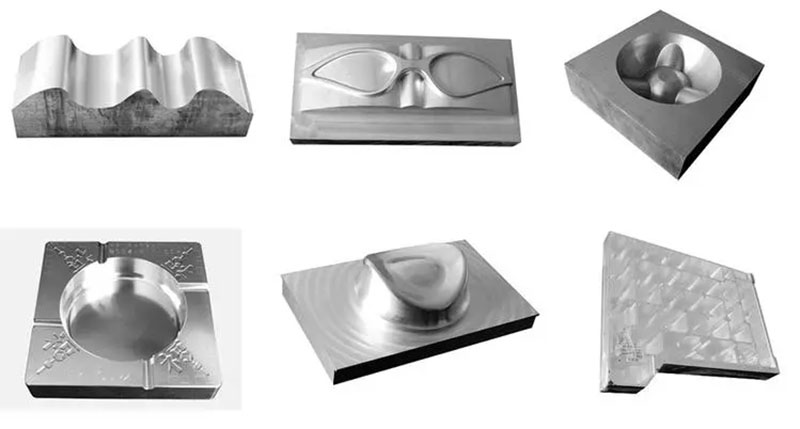

WORKPIECE SAMPLE

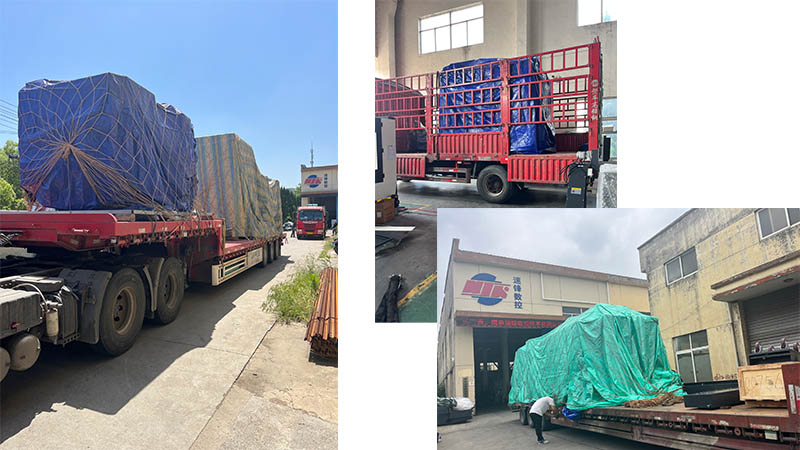

PACKAGE

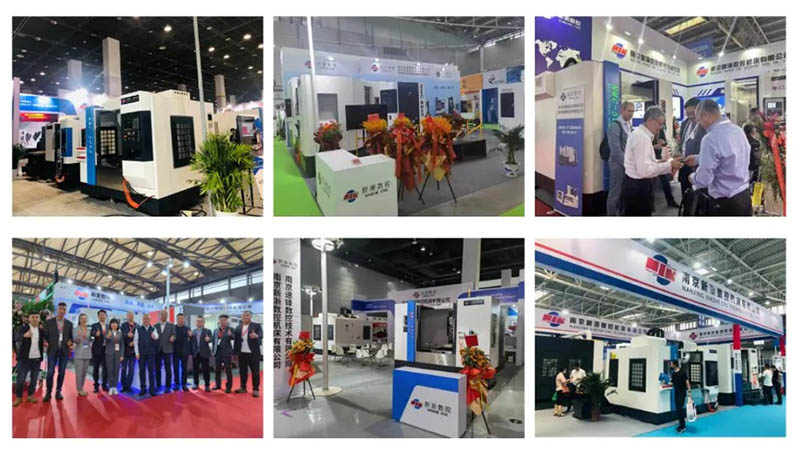

EXHIBITION
CUSTOMER

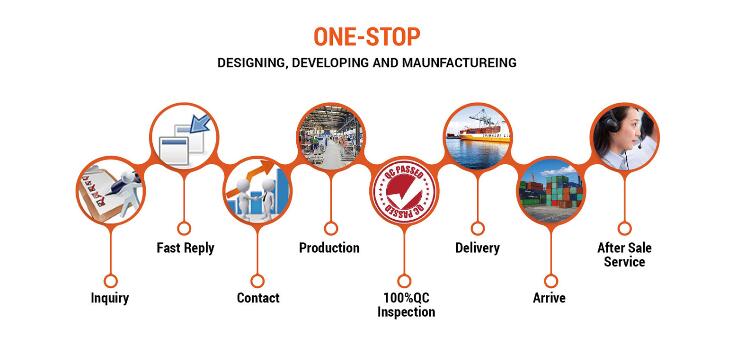

SERVICE
-
2023-06-07
What is the charge of installing and commissioning?
Most of machines you can install well according to our drawing.
For some machines, it need our technician to go to your local site and help you install and commission machines.
At the same time, our technician will train your workers, it will table about 7~15days for different machines.
The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user.
-
2023-06-07
What's the Payment Terms ?
T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC.
Other way can discuss according to different situation.
-
2023-06-07
What's the MOQ?
One set. The big discount will start from three sets.
-
2023-06-07
What's your main products of your company?
We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
-
2023-06-07
What is the package?
Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
-
2023-06-07
Do you have professional engineers?
Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
-
2023-06-07
How about your quality?
We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system.
Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL.
90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation.
So you can rest assured of our quality products and our best services.
-
2023-06-07
Do you have a stock?
Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.
Our fastest delivery time for 1~5 sets will be within one month.
-
2023-06-07
How is the warranty?
We will supply standard ports and accessories with our machine when shipment.
Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,
we will replace them by air or express immediately free of charge.
-
2023-06-07
Where is our factory located? How can I visit there?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
-
2023-06-07
How can I choose the most suitable machines ?
Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us.
We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.
If you are the trading company, you can tell us your customer’s request or we will suggest you our best selling model for you.
